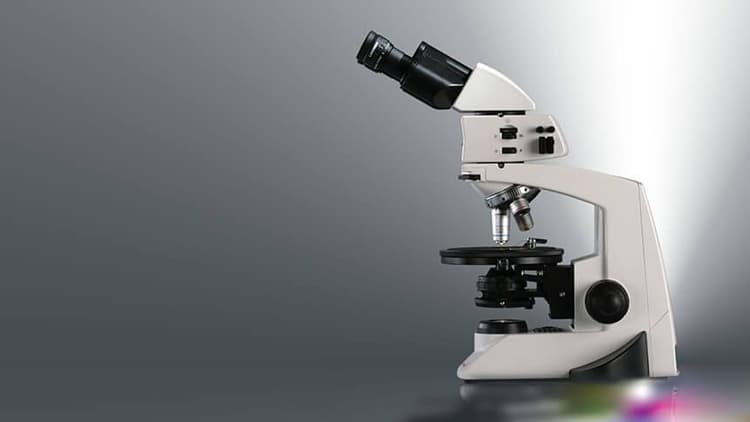

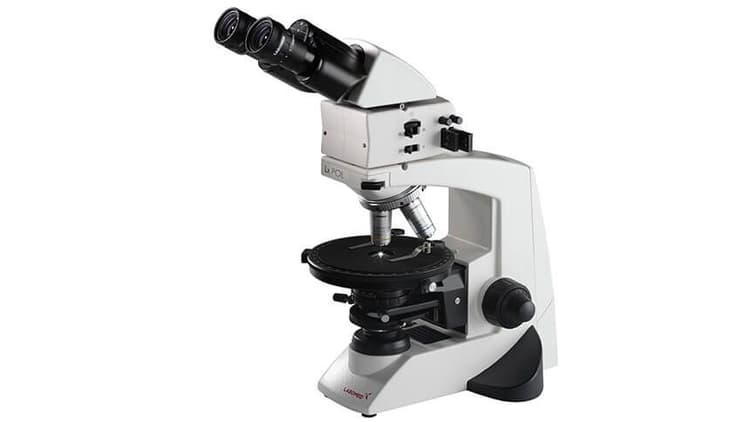

Lx POL Polarizing Microscope

Greater Insight in the Earth and Material Sciences

The highly streamlined Lx POL polarizing microscope delivers reliability and comfort through precision opto-mechanical engineering. Tight design tolerances with the SF (strain-free) optical series produce near-zero optical impurity interference. Careful attention to the sub-stage polarized extinction disc and individually centerable objectives yield a highly controlled light path with respect to stage orientation, and ultimately a sharp contrast image.

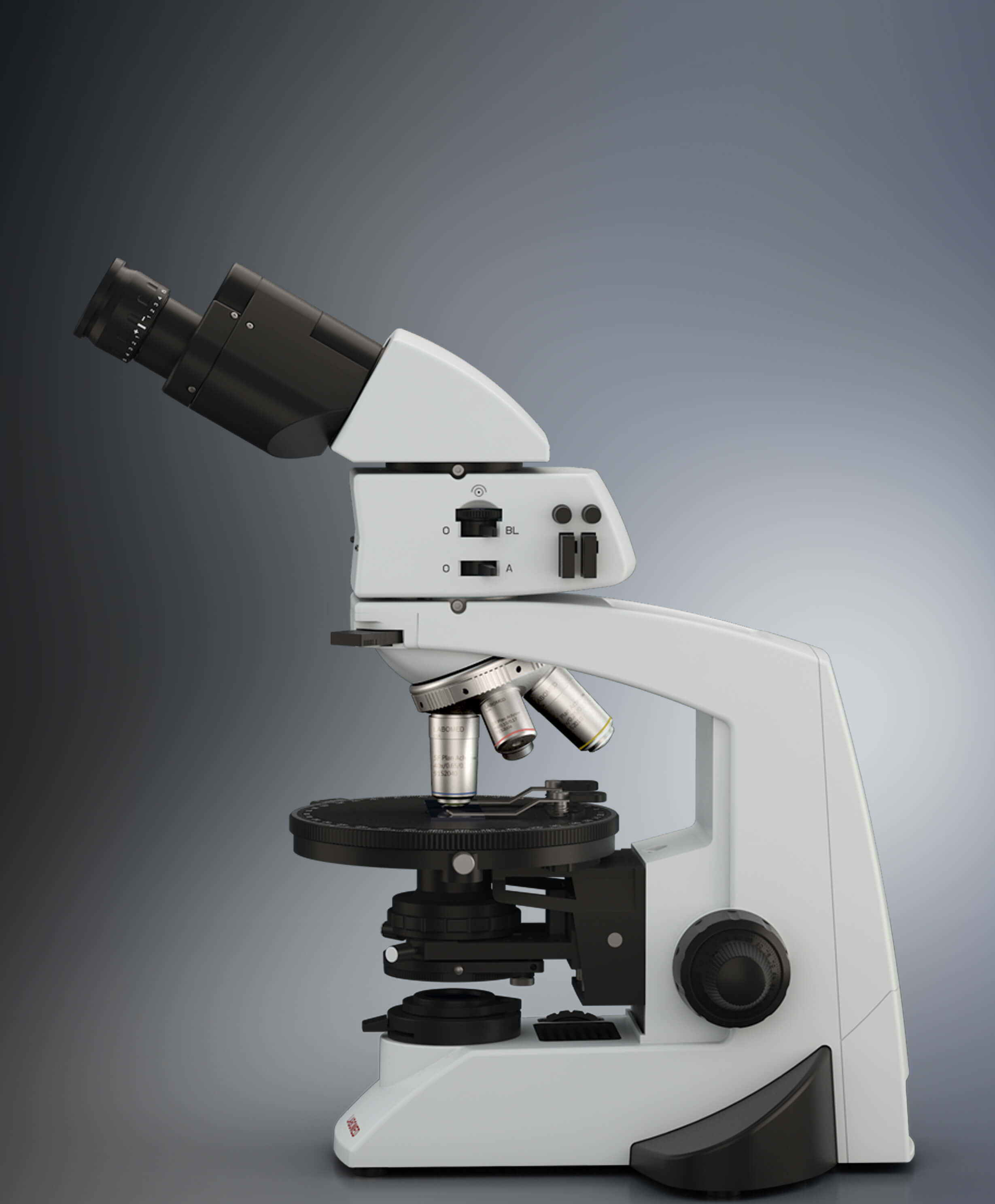

Labomed Lx POL Polarizing Microscope

Lx POL Advantages:

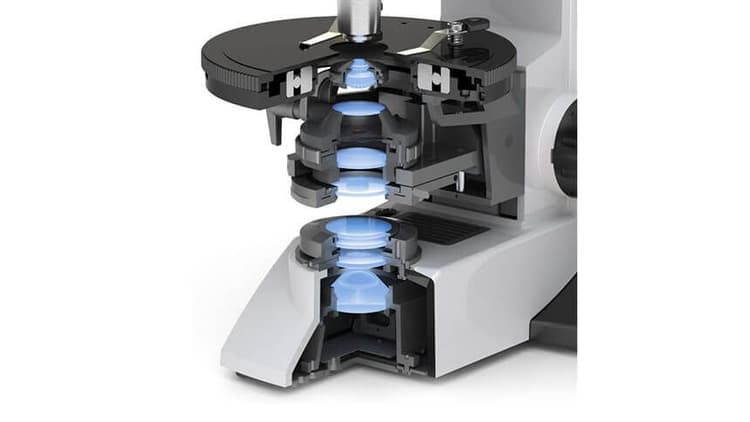

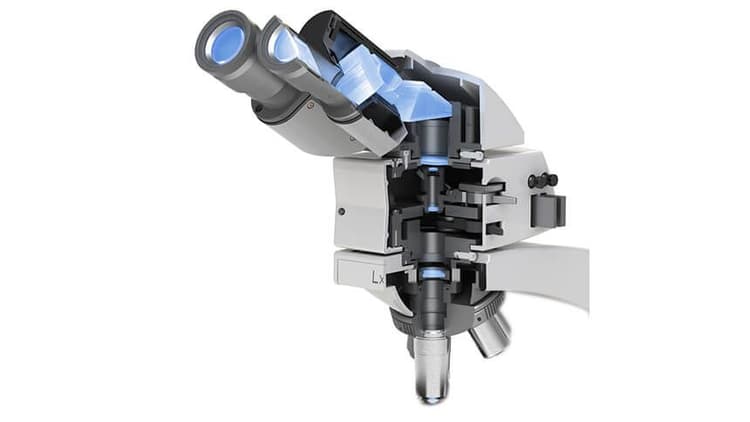

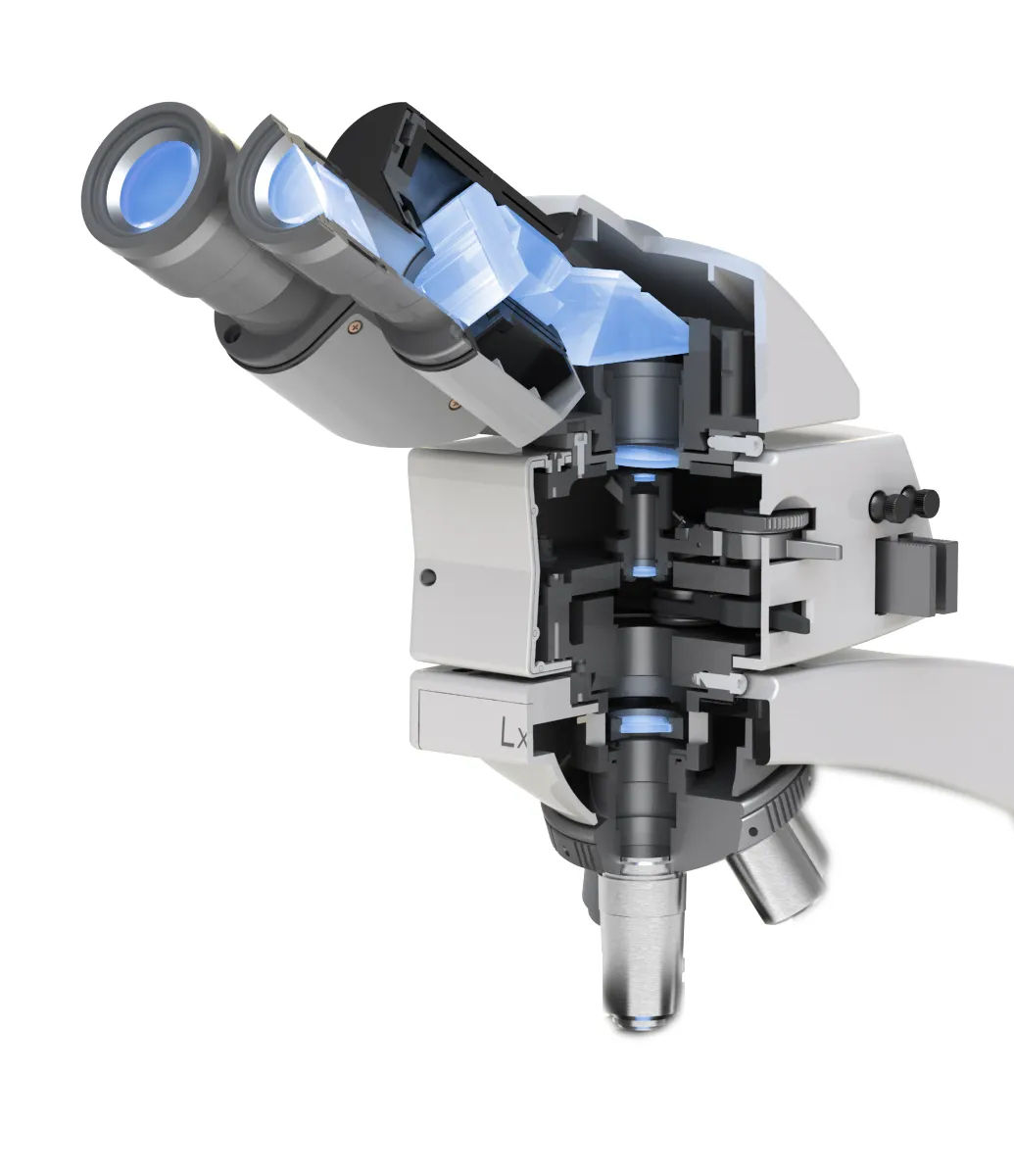

Labomed Lx POL Polarizing Microscope MaxLite™ Coated Optics

The Lx POL polarizing microscope comes equipped with Labomed® MaxLite™ coated optics, a sputtered hard coating technology that delivers a research grade of anti-reflective and scratch resistant properties. This is most useful in earth and materials sciences applications, where integrity of light transmission and mitigation of internal reflections are critical.

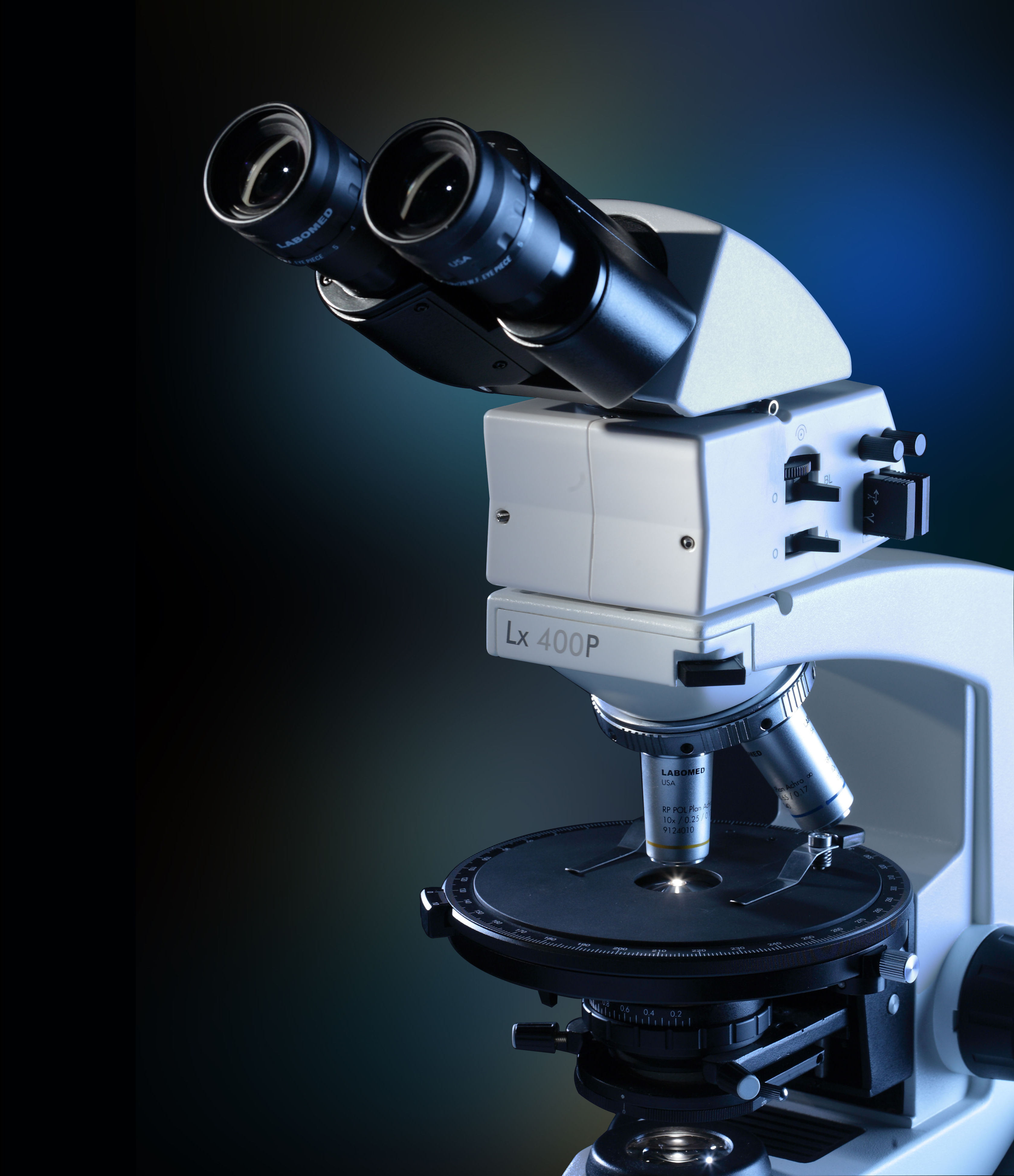

Labomed Lx POL Polarizing Microscope Integrated Anlyzer

For precise conoscopic imaging, an integrated analyzer/Bertrand lens module provides individual flip-in/flip-out of the analyzer and Bertrand lens, with a conveniently located focusing dial. Centration of the Bertrand lens is achieved through easy-access front mounted centering screws. A convenient slider slot will accept a range of compensator plates.

Labomed Lx POL Polarizing Microscope Circular Stage

A large circular stage with two locking brakes is provided, delivering a smooth 360 degrees of rotation. An optional 100x objective further complements the SF series of strain-free optics, ensuring no optical impurities interfere with polarized light. A fixed verticality crosshair is a standard feature, maintaining its orientation as IPD is adjusted.

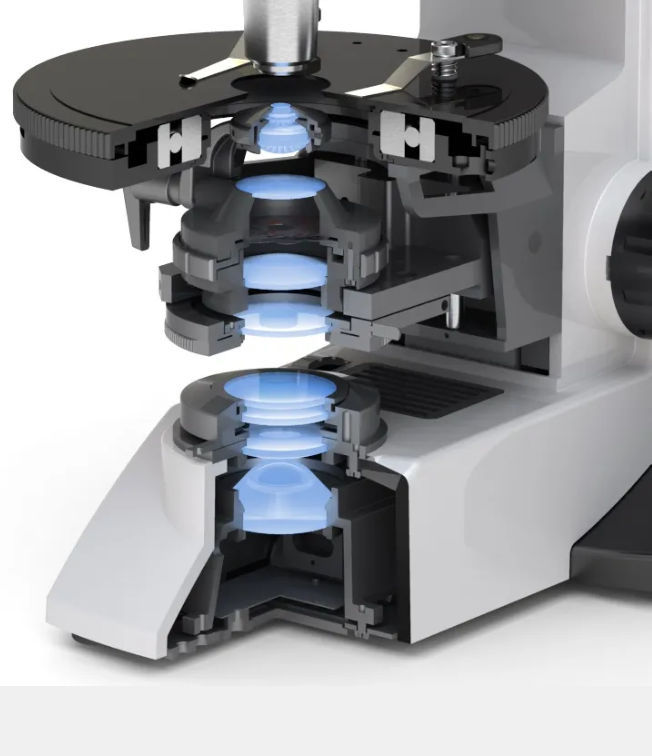

Labomed Lx POL Polarizing Microscope Kohler Illumination

Two compensator plate slots and two centering tool slots are located onboard the analyzer/Bertrand lens module to prevent unwanted loss of accessories. The microscope comes equipped with λ, 1/4 λ, and Quartz-Wedge plates.

Polarizing Microscope Specifications

  • Stand

    Single mold sturdy stand with anti rust materials. Extended base for better stability

  • Viewing Bodies

    Siedentopf Binocular or Trinocular head; 30° inclined; 360° rotatable; IPD 52-75 mm

  • Eyepiece

    Focusable Wide Field eyepiece 10x/20mm with foldable eye guard. With factory installed fixed-verticality crosshair in one eyepiece

  • Nosepiece

    Reverse angle quadruple nosepiece (ball bearing type) with click stops, featuring independently centerable objectives

  • Analyzer

    Adjustable analyzer with centration screws. Focusable Bertand lens. Slider slots and spare slider holders. Comes equipped with Lamda, 1/4 Lamda, and Quartz Wedge plates.

  • Polarizer

    Rotating polarizer with orientation markers at every 90°

  • Objectives

    SF series strain free infinity corrected DIN Plan Achromatic objectives: 4x(WD 30.0mm), 10x(WD 7.00mm), 40x(WD 0.65 mm); Optional 100x(WD0.23mm)spring loaded, oil objective

  • Circular stage

    360° rotatable stage, 160mm with one degree increments and spring clips

  • Condenser

    0.9 NA centerable strain free conderser

  • Focusing

    Feather touch attrition-free coaxial coarse and fine focus adjustment with auto tension adjust meant for longer life and responsive movement. Weighted fine focus.

  • Illumination

    Halogen 6v-30W with one installed bulb, Koehler field diaphragm. LED illumination optional.

  • Electrical

    Universal input 100V - 240V AC, 50/60Hz. Built-in voltage sensing power supply.

Dimensions (mm)

Labomed Lx POL Polarizing Microscope Line Drawing

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Dual Viewing Bridge
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters


Package Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

Configurations

Labomed Lx POL Polarizing Microscope System Drawing

Downloads

Labomed Lx POL Polarizing Microscope Brochure

Lx POL Brochure

Learn more about the Lx POL's unique value offering.
Download English
Labomed Lx POL Polarizing Microscope User Manual

Lx POL User Manual

Learn all about the Lx POL, its functions, and more.
Download English
Download Spanish
