The Power of Zoom

The Labomed® Magna dental microscope brings to your practice the power of crystal clear visualization in a compact, ergonomic design. The system features an Automatic Balancing Arm (ABA) that gives users 360 degrees of freedom in positioning the microscope. A highly responsive apochromatic zoom system ensures ease in landing on the ideal magnification. Super bright, long lasting LED illumination means dental professionals won't miss a thing.



Magna

Magna Advantages

Magna Advantages

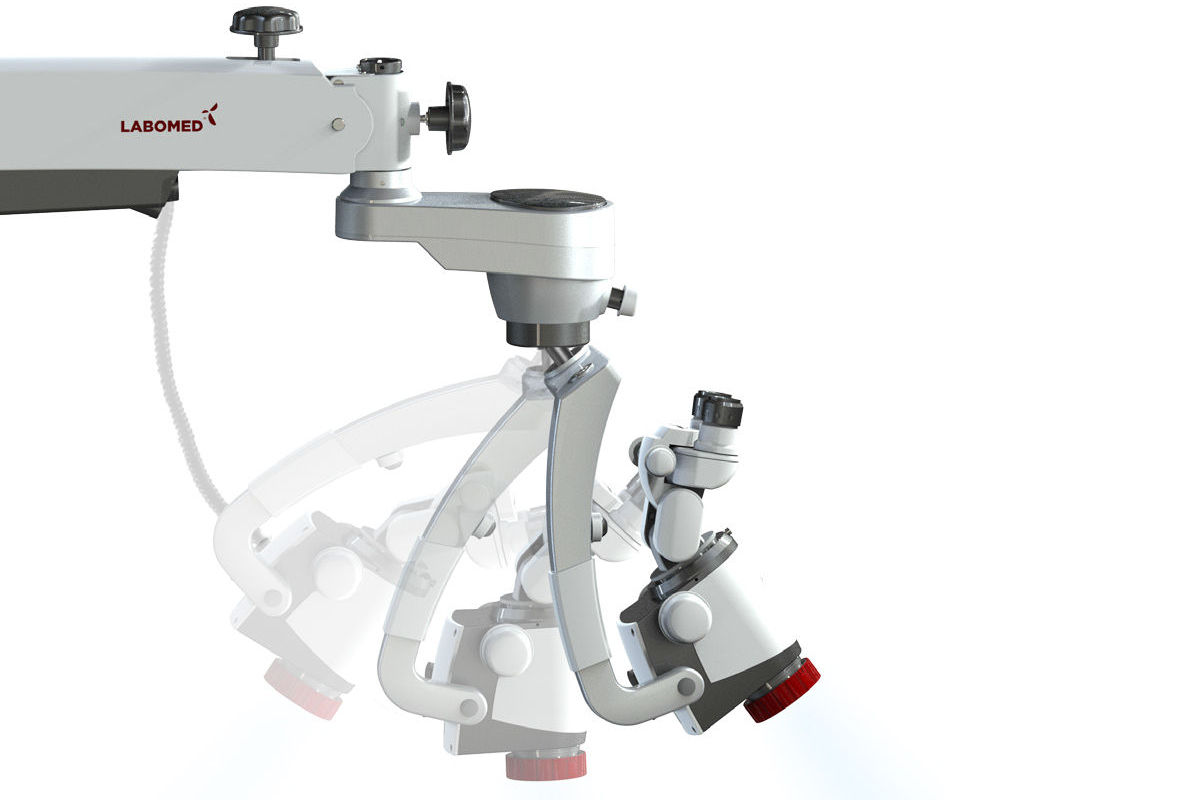

A brilliantly designed electromagnetic brake system provides ultimate flexibility in microscope positioning. Left/right handles each with their own brake-release buttons extend versatility. Holding down either button allows the microscope to move with ease. Upon release, the microscope locks and balances in place.

Magna Advantages

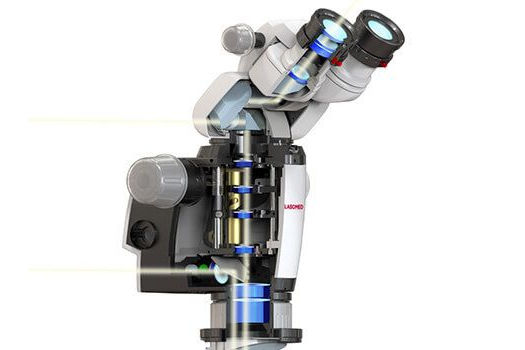

Apochromatic premium optics are packaged in a convenient zoom system to provide a continuous range of magnifications. The NuVar™ variable working distance objective (f300-f400mm) comes standard. Proprietary MaxLite™ coatings promise reflection-free, durable optics, ensuring the highest fidelity resolution.

Magna Advantages

A super bright LED provides shadow-free light with a natural daylight temperature (over 100,000 lux) for up to 60,000 hours. For digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™.

Microscope Specifications

  • Binocular Tube

    0-210° tilting head with Rotoplate, DBSi (inclined double beam splitter), Double Iris and DSLR Adapter

  • IPD Range

    50-75 mm

  • Eyepiece

    WF 10X/18 mm lockable eyepieces, one with resolution markup to assist in diopter adjustment

  • Diopter Adjustment

    ± 5mm with diopter lock

  • Apochromatic Magnichanger

    Galilean Zoom 1:6, convertible to 8 step magnichanger

  • Zoom Range

    0.4-2.5X

  • Objective

    NuVar system with variable focal length adjustment from 300-400 mm with fine focus mechanism

  • Microscope carriers

    ABA (Automatic Balancing Arm) with electromagnetic release for easy, drift free positioning

  • Light Source

    50 watt LED, 90-240V

  • Maximum Wattage

    195 watts

  • Built-in-Filters

    Green & Yellow

  • Vertical Movement of arm

    ± 250 mm, power saving feature with light cut-off in park position

  • Stand

    Robust, vibration-free stand on a cross base with four lockable caster wheels

  • Mounting Options

    Floor stand, wall mount and ceiling mount

Configurations

Configurations

Downloads

Magna Brochure

Magna Brochure

Learn more about the Magna's unique value offering.

User Manual

User Manual

Learn all about the Magna, its functions, and more.

Gallery

Video

Magna Introduction (English)

Magna Introduction (English)

Magna Introduction (Spanish)

Magna Introduction (Spanish)

Magna Introduction (Portuguese)

Magna Introduction (Portuguese)

ProLine Accessories Overview

ProLine Accessories Overview
