Luxeo 6Z Microscope

A Modular Design to Streamline Workflow

The Luxeo 6Z is the first in a new series of stereo microscopes designed to bring greater flexibility and performance to work stations. With total integration of gooseneck and axial illumination, versatility in transmitted illumination features, and highly ergonomic stand options to choose from, the Luxeo 6Z will delight in every environment.

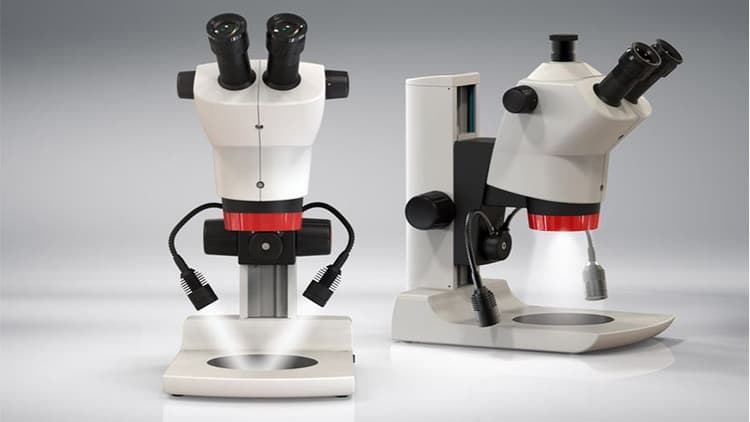

Labomed Luxeo 6Z Stereo Microscope

Luxeo 6Z Advantages:

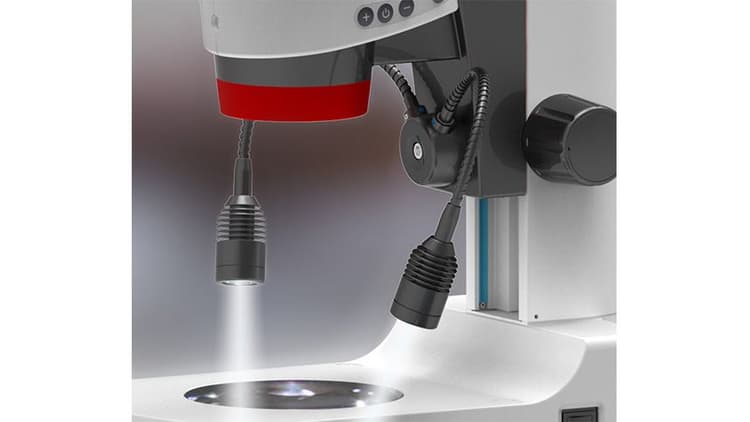

Labomed Luxeo 6Z Stereo Microscope Gooseneck Lights

Two flexible goosenecks cables are integrated within the focus bracket, creating more clearance for controlling focus drive. A built in 23-LED ring light with sectional controls will enable axial illumination while mitigating surface glare. An intuitive membrane switch cluster makes light intensity control convenient.

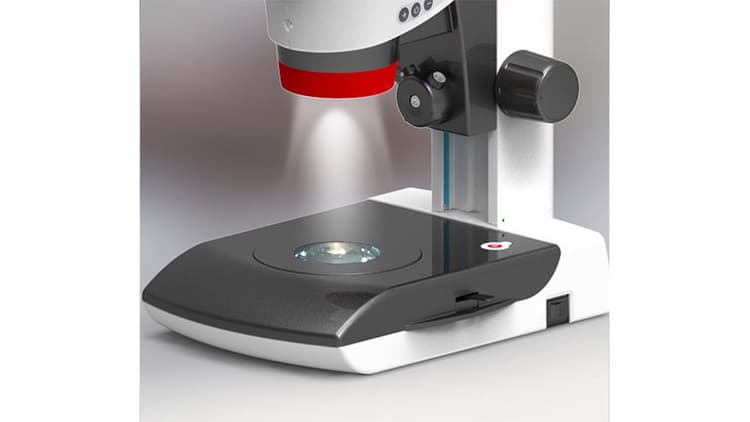

Labomed Luxeo 6Z Stereo Microscope Bright LED

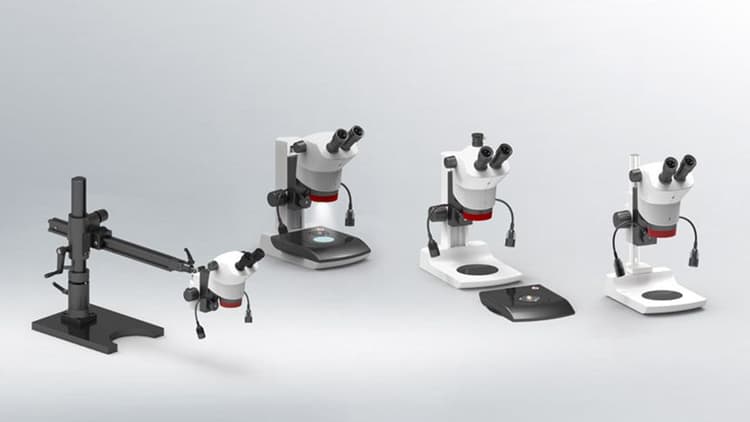

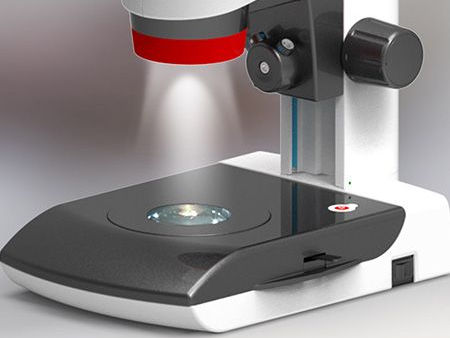

A bright LED base light illuminates objects from below. Users can quickly convert the system into a slim-base setup by removing the illumination cartridge. A lever toggles between bright field and dark field transmitted illumination for biological specimen. Flex Arm, Boom Stand, and Slim Base stand options are available.

Labomed Luxeo 6Z Stereo Microscope Zoom System

A well-designed 6:1 Zoom system provides ease and comfort in accessing the right resolution. A detent system with magnification stops can be engaged for calibrating systems to processes. MaxLite™ coatings on all optical surfaces reduce glare and improve light homogeneity in the most demanding environments.

Microscope Specifications

  • Optical System

    Greenough

  • Magnification

    6:1 Zoom Ratio

  • Eyepieces

    Widefield 10x/22mm (interchangeable)

  • Diopter Correction

    + / - 5 diopters

  • Viewing Body

    Integrated Binocular, 45º, 50-75mm diopter adjustment

  • Working Distance

    110mm

  • Magnification Range

    8x to 50x Continuous

  • Object Field Diameter

    4.4 to 27.50mm

  • Eye Guards

    Rubber, Foldable

  • Illumination Control

    LED ring light with + / - 30º oblique illumination settings with intensity control.
    Front Angle Arc illumination with cluster of 11 LEDs
    Rear Angled Arc illumination with cluster of 12 LEDs
    Dual LED goose neck with intensity control

    All intensity controlled through membrane switch on microscope pod

  • Camera Adapters

    CCD adapters 0.3x, 0.5x, 0.7x; DSLR adapters for Canon, Sony and Nikon

  • Auxiliary Objectives (Optional)

    0.5x, 1.0x, 2.0x

  • Transmitted Light

    Detachable BF/DF(Bright field/Dark field)
    Optional: mirror base for transparent objects

  • LED Life

    Up to 25,000 hours

  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emmissions

  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stablizer

Dimensions (mm)

Luxeo 6Z Stereo Microscope Line Drawing

Configurations

Luxeo 6Z Stereo Microscope System Drawing

Downloads

Labomed Luxeo 6Z Stereo Microscope Brochure

Luxeo 6Z Brochure

Learn more about the Luxeo 6Z's unique value offering.
Download English
Download Spanish
Labomed Luxeo 6Z User Manual

Luxeo 6Z User Manual

Learn all about the Luxeo 6Z, its functions, and more.
Download English
Download Spanish
Labomed Luxeo 6Z User Manual

Flex Arm User Manual

Learn all about the Luxeo 6Z Flex Arm and its functions
Download
