Luxeo 4Z

Stereo Microscopes Luxeo 4ZMICROSCOPE

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.

ADVANTAGES OF Luxeo 4Z

Magna Advantages

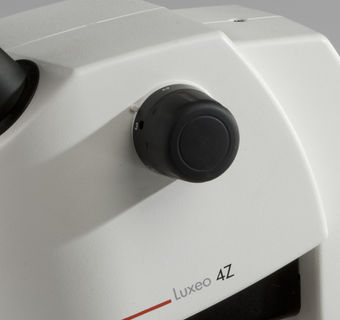

Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.

Magna Advantages

A +/- 30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3-LED glow screen. Continuous Intensity control is managed through a control dial on ring light.

Magna Advantages

Hi-precision plan optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.

MICROSCOPE SPECIFICATIONS
  • Optical System

    Greenough

  • Illumination Control

    Incident / Transmitted (Oblique Settings) / Combined illumination control buttons with rheostat dial for light intensity control

  • Incident Light

    + / - 30º Oblique illumination and variable intensity control dial

  • Magnification

    4.4:1 Zoom Ratio

  • Default

    undefined

  • Transmitted Light

    3-LED super bright glow screen, low heat emission

  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

  • Eyepiece

    Widefield 10x/18mm (interchangeable)

  • Object Field Diameter

    6.6 to 28.5 mm

  • Diopter Correction

    + / - 5 diopters

  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emmissions

  • Magnification Range

    8x to 35x Continuous

  • LED Life

    Up to 25,000 hours

  • Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Auxiliary Eyepieces
  • Polarizing Kit
  • Auxiliary Objectives
  • Soft Carrying Case
  • Viewing Body

    Integrated Binocular, 45º, 52-74mm diopter adjustment

  • Working Distance

    100mm

  • Eye Guards

    Rubber, Retractable

  • Incident Light Method

    Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light (5 LEDs)

  • Packaged Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth
  • Camera Adapters

    C-mount adapters 0.3x, 0.5x, 0.7x

  • Illumination

    LED Transmitted & Incident

Magna Advantages
CONFIGURATIONS
Configurations
DOWNLOADS
Brochure

Luxeo 4Z Brochure

Learn more about the Luxeo 4Z's unique value offering.

User Manual

Luxeo 4Z User Manual

Learn all about the Luxeo 4Z, its functions, and more.
