Luxeo 4Z Microscope

A Bright Idea for a Laboratory Setting

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.

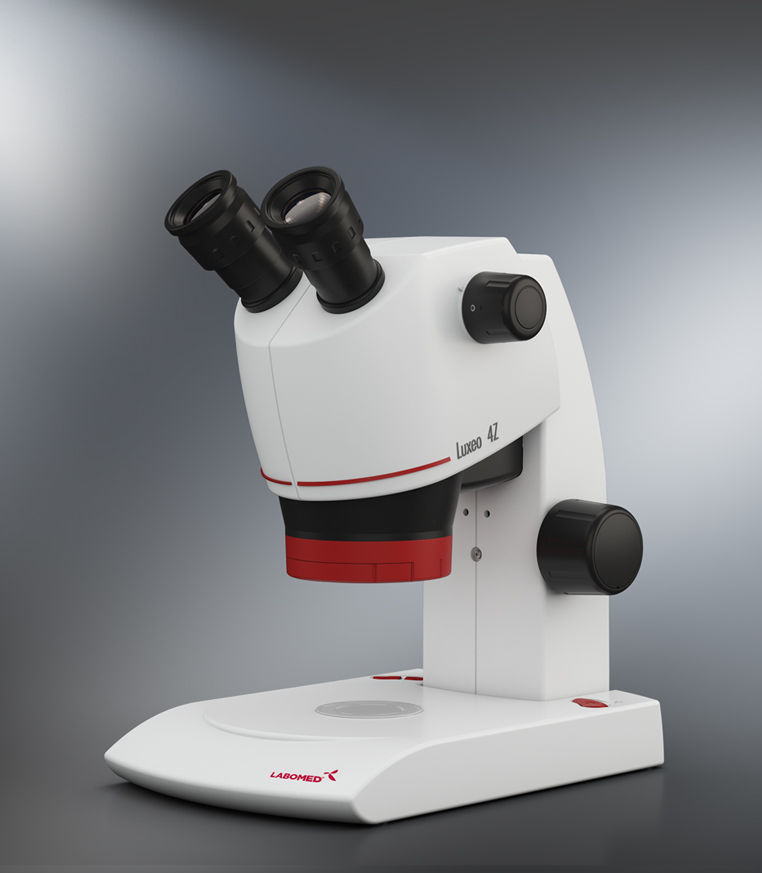

Labomed Luxeo 4Z Microscope

Luxeo 4Z Advantages:

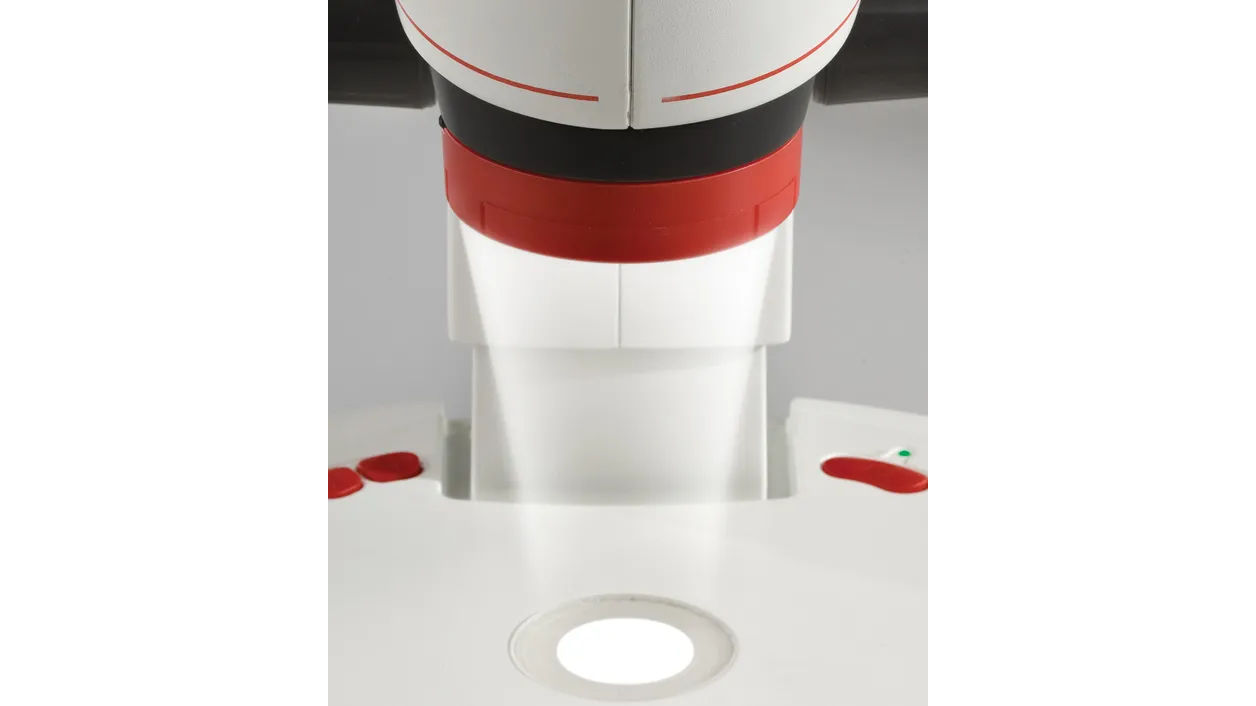

Luxeo 4Z Microscope Ringlight

A +/- 30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3-LED glow screen. Continuous Intensity control is managed through a control dial on ring light.

Luxeo 4Z Microscope Precision Optics

Hi-precision plan optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.

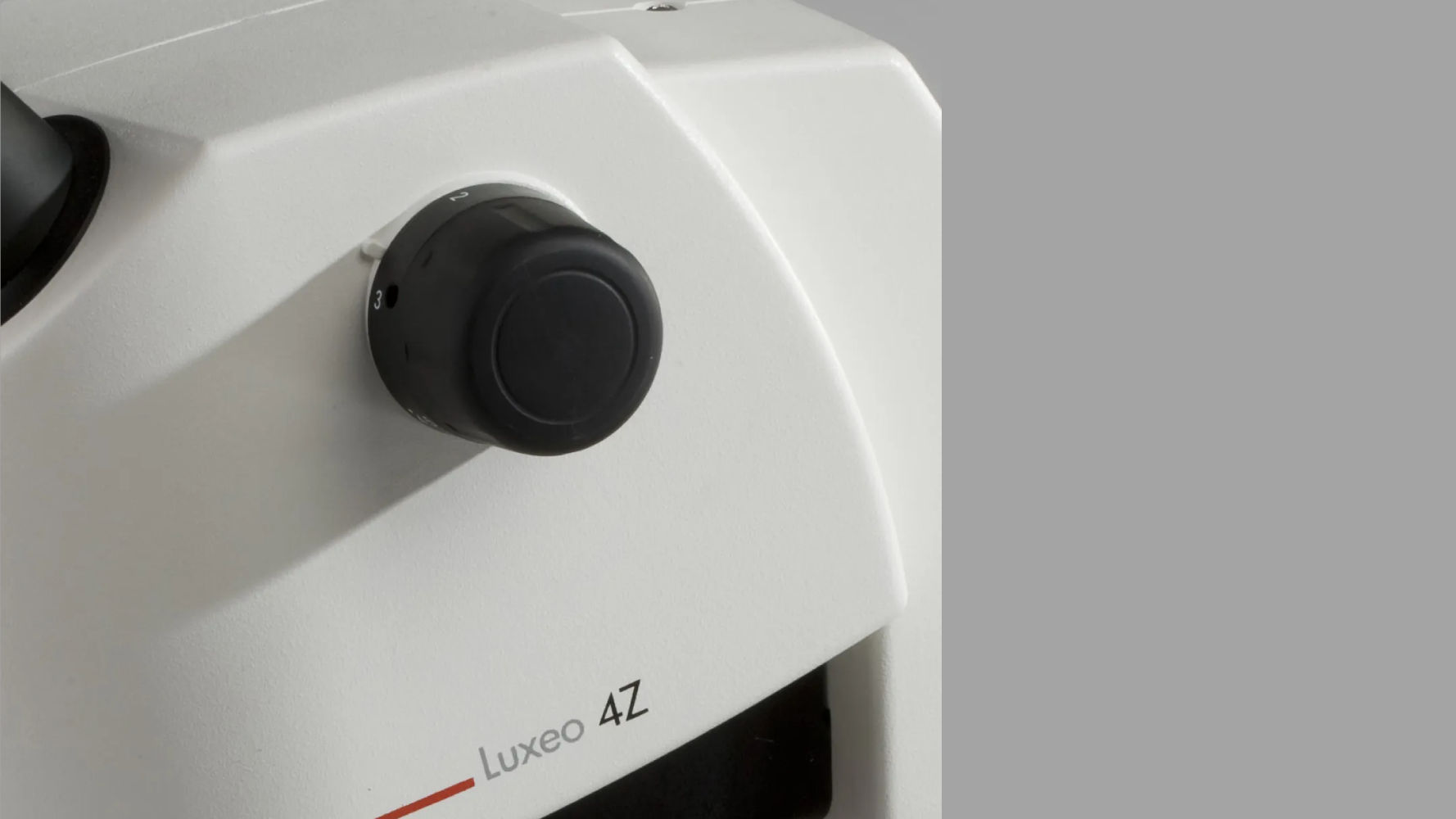

Luxeo 4Z Microscope Responsive Focus

Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.

Microscope Specifications

  • Optical System

    Greenough

  • Magnification

    4.4:1 Zoom Ratio

  • Eyepieces

    Widefield 10x/18mm (interchangeable)

  • Diopter Correction

    + / - 5 diopters

  • Viewing Body

    Integrated Binocular, 45º, 52-74mm diopter adjustment

  • Working Distance

    100mm

  • Magnification Range

    8x to 35x Continuous

  • Object Field Diameter

    6.6 to 28.5 mm

  • Eye Guards

    Rubber, Retractable

  • Illumination Control

    Incident / Transmitted ("Oblique" Settings) / Combined illumination control buttons with rheostat dial for light intensity control

  • Incident Light

    + / - 30º Oblique illumination and variable intensity control dial

  • Incident Light Method

    Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)

  • Transmitted Light

    3-LED super bright glow screen, low heat emission

  • LED Life

    Up to 25,000 hours

  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emmissions

  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stablizer

Dimensions (mm)

Luxeo 4Z Microscope Line Drawing

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Auxiliary Eyepieces
  • Polarizing Kit
  • 1.5x Auxiliary Objective
  • Soft Carrying Case

Package Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth

Configurations

Luxeo 4Z Microscope System Drawing

Downloads

Labomed Luxeo 4Z Microscope Brochure

Luxeo 4Z Brochure

Learn more about the Luxeo 4Z's unique value offering.
Download English
Download Spanish
Labomed Luxeo 4Z User Manual

Luxeo 4Z User Manual

Learn all about the Luxeo 4Z, its functions, and more.
Download English
Download Spanish
