Gynecology Prima CSMICROSCOPE

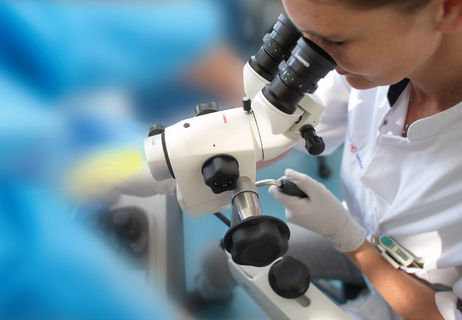

The PRIMA CS is a versatile solution for surgical and diagnostic work in gynecology. A meticulously designed optical system and built-in high power LED illumination module come together to provide a more streamlined microscope. A suspension and swivel arm mounted on a stable base brings greater flexibility to both clinical and surgical environments.
ADVANTAGES OF Prima CS
.jpeg?tr=w-auto,h-320)
An Apochromatic 5-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through a range of long working distance CMOs.
A single 27-watt LED intelligently drives the illumination system to deliver over 75,000 lux at a carefully selected color temperature of 3700K, making Prima CS’s eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours..
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™. Or quickly adapter your existing endoscope camera with our endo adapter.
Objective
f-300mm, manual focus.
Weight of complete microscope
Microscope with carrier - 2.8kg Swivel arm - 8kg Base with pillar - 40kg
Built-in-Filters
Green

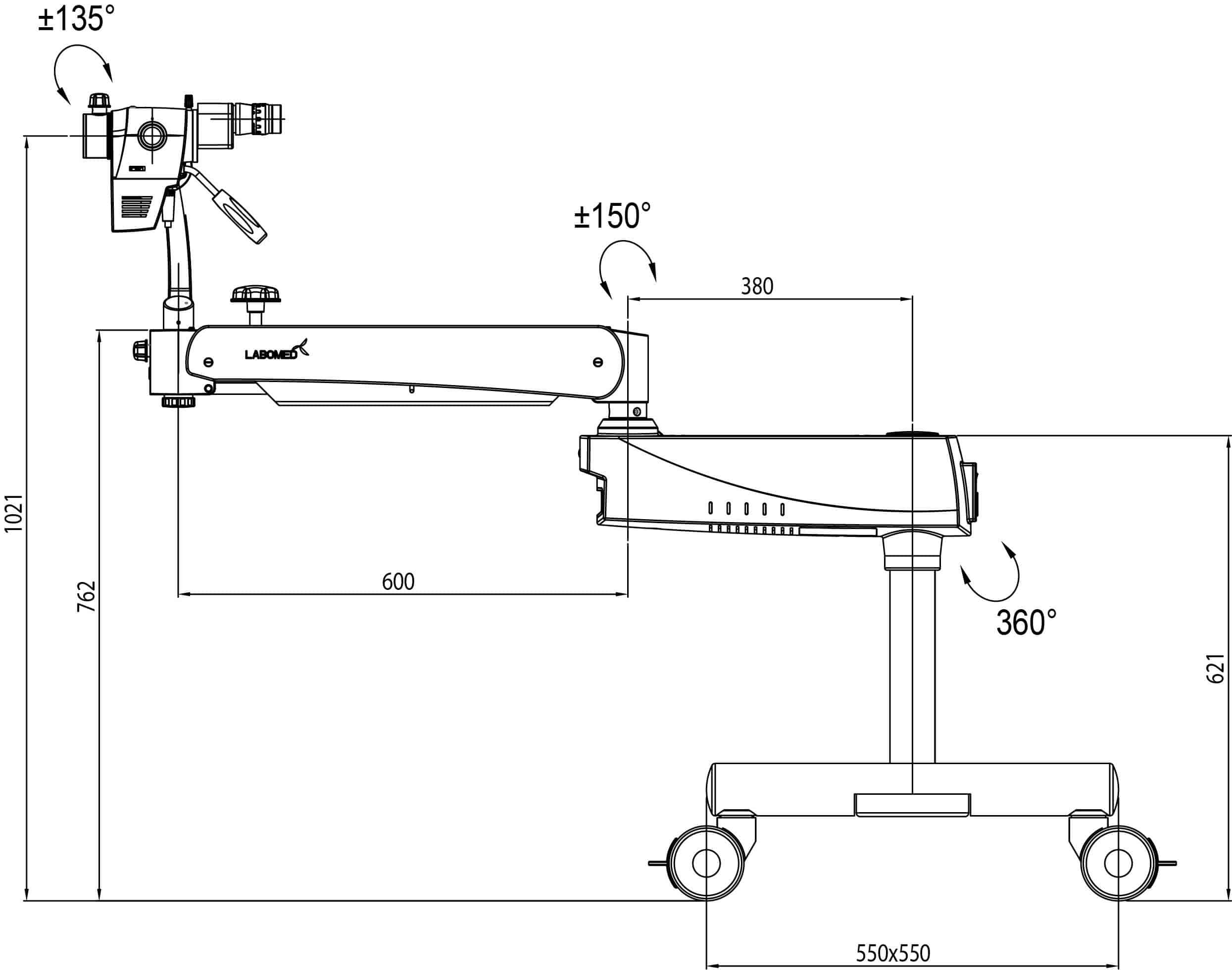

Vertical Movement of arm
± 250 mm
Optional Accessories
Beam splitter, CCD, USB Cameras
Binocular Tube
Straight 90° viewing tube Optional: 45° inclined
Power Supply
100-240V, 50/60HZ, 1.6 Amp
Eyepiece
WF 10X/18mm with foldable eye guards, diopter adjustment ± 5mm Optional: WF 12.5X/18mm
Apochromatic Magnichanger
5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
Illumination
27W LED
