Prima CS Microscope for Obstetrics & Gynecology | Labomed®

Delivering Efficiency, Performance, and Convenience to Today’s OBGYN

The PRIMA CS is a versatile solution for surgical and diagnostic work in gynecology. A meticulously designed optical system and built-in high power LED illumination module come together to provide a more streamlined microscope. A suspension and swivel arm mounted on a stable base brings greater flexibility to both clinical and surgical environments.

Prima CS

PRIMA CS Advantages

PRIMA CS Advantages

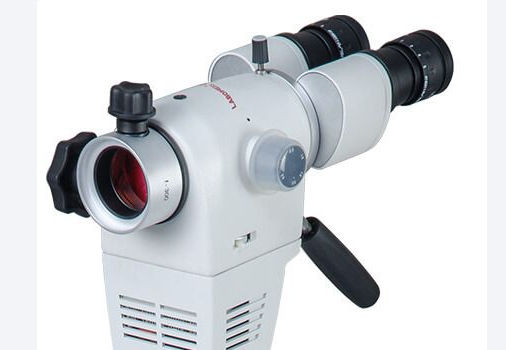

A single 27-watt LED intelligently drives the illumination system to deliver over 75,000 lux at a carefully selected color temperature of 3700K, making Prima CS’s eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours..

PRIMA CS Advantages

An Apochromatic 5-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through a range of long working distance CMOs.

PRIMA CS Advantages

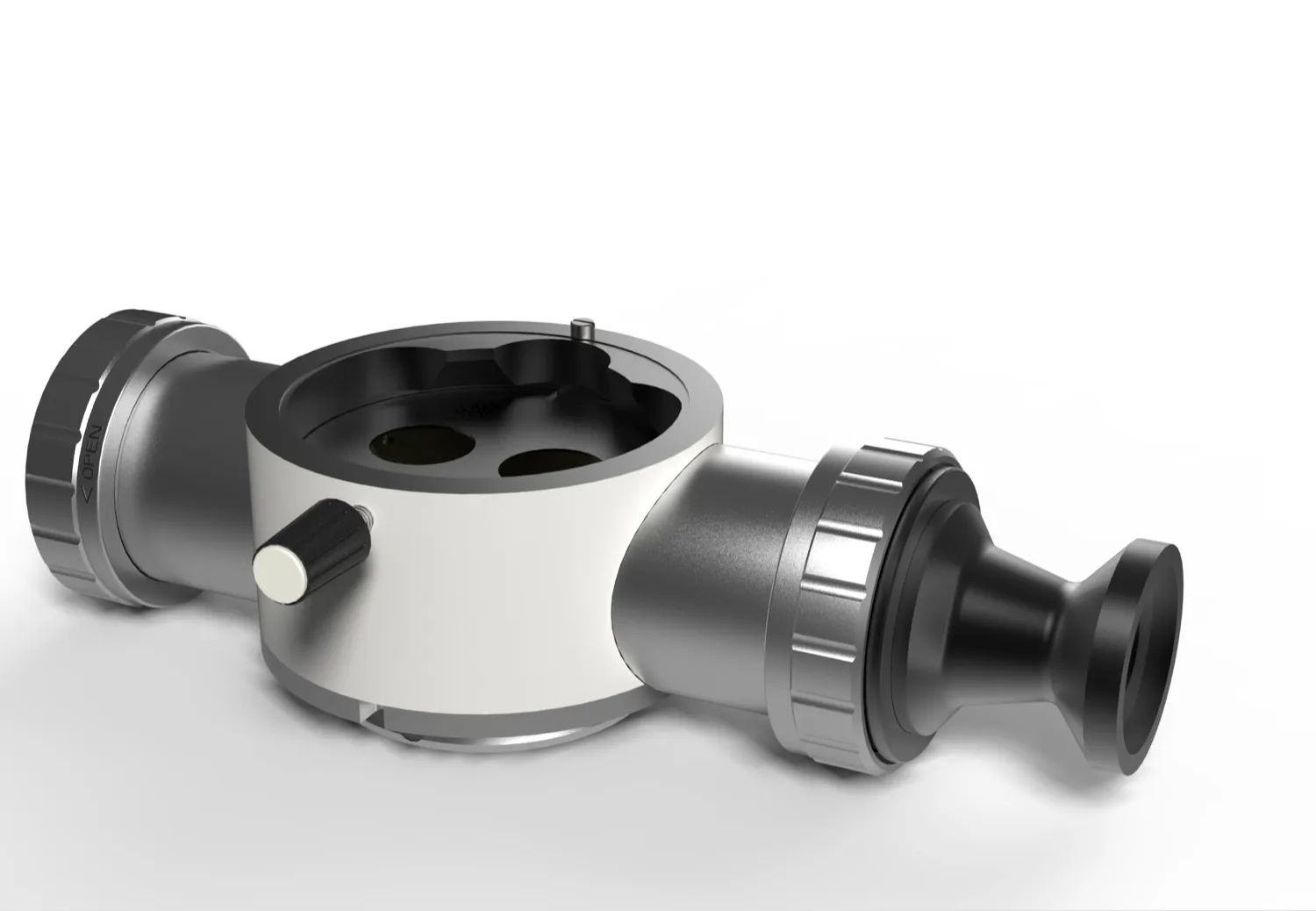

To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™.

Microscope Specifications

  • Binocular Tube

    Straight 90° viewing tube Optional: 45° inclined

  • Eyepiece

    WF 10X/18mm with foldable eye guards, diopter adjustment ± 5mm Optional: WF 12.5X/18mm

  • Apochromatic Magnichanger

    5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X

  • Objective

    f-300mm, manual focus

  • Illumination

    27W LED

  • Built-in-Filters

    Green

  • Vertical Movement of arm

    ± 250 mm

  • Power Supply

    100-240V, 50/60HZ, 1.6 Amp

  • Optional Accessories

    Beam splitter, CCD, USB Cameras

  • Weight of complete microscope

    Microscope with carrier - 2.8kg Swivel arm - 8kg Base with pillar - 40kg


Dimensions (mm)


Configurations

Downloads

Prima CS Brochure

Prima CS Brochure

Learn more about the Prima CS's unique value offering.

Prima CS User Manual

Prima CS User Manual

LEARN ALL ABOUT THE PRIMA CS, ITS FUNCTIONS, AND MORE.

Video

Prima CS Introduction (Spanish)

Prima CS Introduction (Spanish)

Introduction to Prima CS (English)

Introduction to Prima CS (English)
×
