SLx 40 / 45

Slit Lamp SLx 40 / 45MICROSCOPE

SLx 40 & 45 are value-driven slit lamp microscope designs intended to maximize capital ROI by today's Optometrists and Ophthalmologists. Two options are available in the form of simple compact illumination as well as tower style illumination that enable a multitude of modalities in lane-chair microscopes for diagnostics as well as laser driven surgery. Apochromatic optics and efficient LED or Halogen illumination  systems ensure crisp visualization of the cornea and fundus. And with industry leading support, these slit lamps treat users to a lifetime of carefree use.

ADVANTAGES OF SLx 40 / 45

Magna Advantages

A super bright 5W LED will provide IR/UV free illumination for over 50,000 hours of bulb life. An optional 6V20W halogen option is also available for those maintaining clinical equipment consistency. A highly efficient apochromatic optical system delivers a crisp, homogenously illuminated visual field.

Magna Advantages

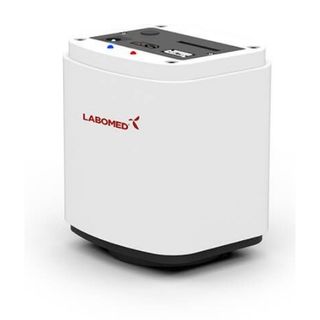

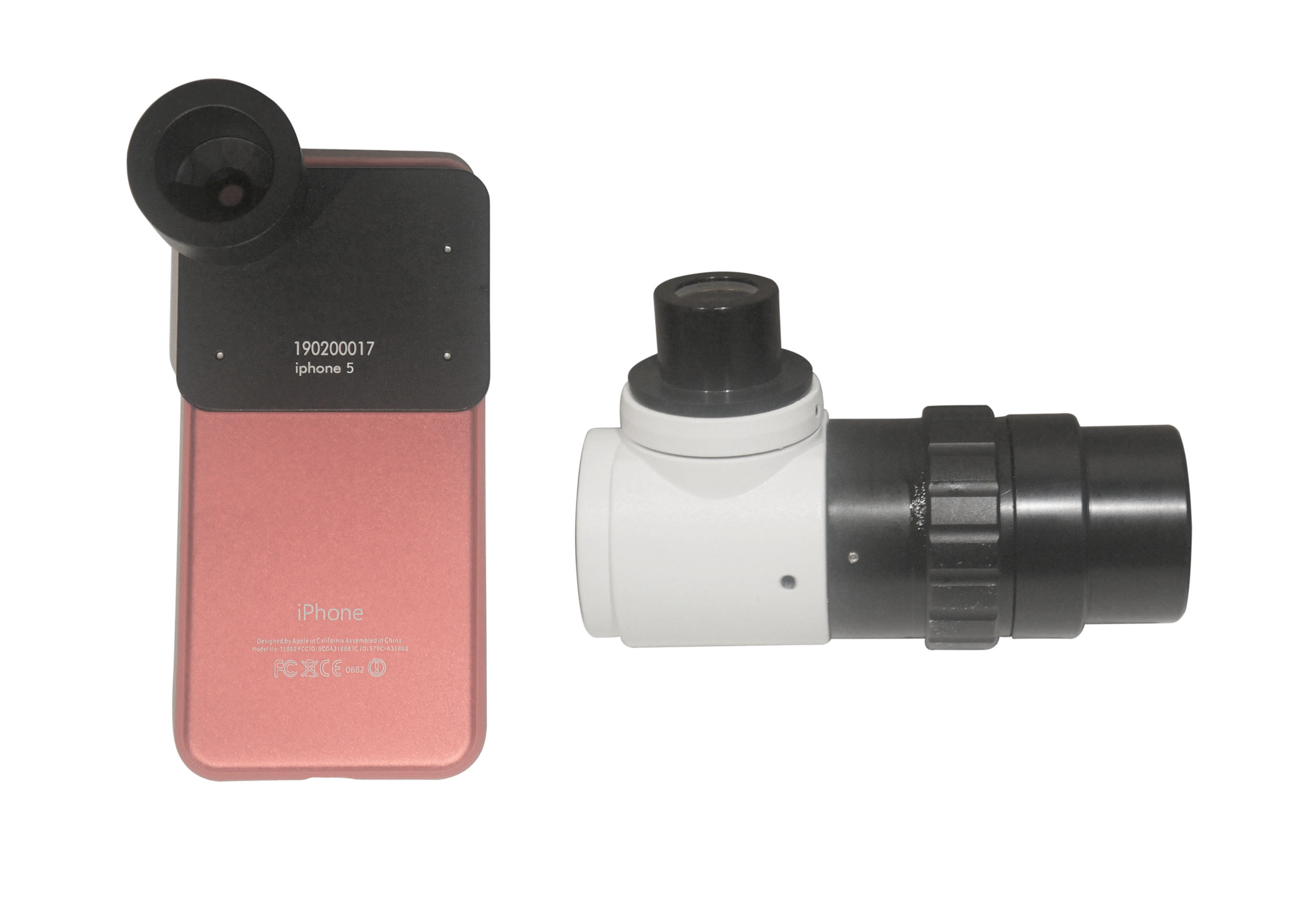

SLx slit lamps offer a variety of video and digital documentation options, both for real-time feedback as well as insurance reimbursement. Select from our HD streaming cameras or adapt your own DSLR cameras or iPhone with the use our ProLine adapters.

Magna Advantages

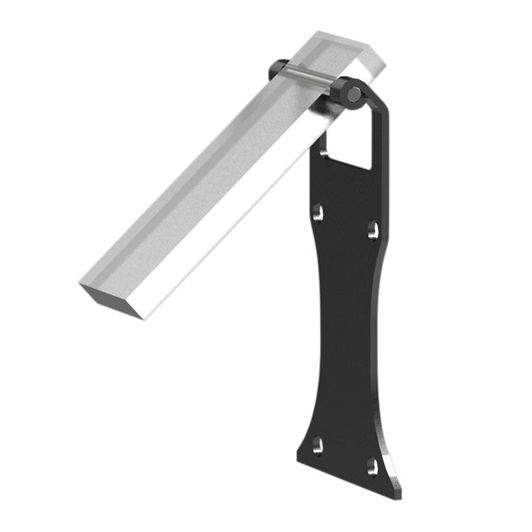

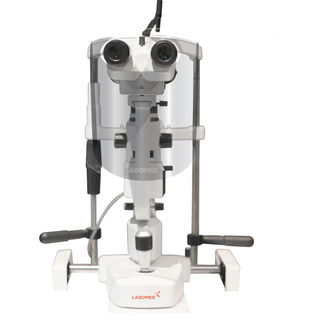

A host of accessories will allow you seamlessly adapt a tonometer, as well as create a microbial transparent barrier between physician and patient to ensure a high standard of hygiene with our AeroGard.

MICROSCOPE SPECIFICATIONS
  • Vertical (up/down)

    30 mm

  • Illumination

    6V20W Halogen or 5W LED

  • Optional Accessories

    Tonometer, AeroGard breath shield, Beam splitter, Cameras, Diffuser, Motorized table

  • Slit Tilt

    SLx 40: n/a
    SLx 45: 20°

  • Weight

    SLx 40: 25 kg (packed)
    SLx 45: 30 kg (packed)

  • IPD Range

    49-78 mm

  • Lateral (left/right)

    107 mm

  • Longitudinal (in/out)

    100 mm

  • Built-in-Filters

    SLx 40: Red free, Cobalt blue, Heat absorbing
    SLx 45: Red free, Cobalt blue, Heat absorbing, Neutral density

  • Table Base Size

    367 x 360 x 5.5 mm (Metal)

  • Microscope

    Galilean

  • Magnification

    3-step: 10x, 16x, 25x

  • Slit Apertures

    SLx 40: 0.6, 5.8, 9, 13.5 mm and continuous 1.5 to 12.0 mm
    SLx 45: 0.3, 1, 3, 5, 9, 12 mm and continuous 1.5 to 12.0 mm

  • Default

    undefined

  • Slit Length/Width

    SLx 40: 0-13.5 mm
    SLx 45: 0-12 mm

Magna Advantages
DOWNLOADS
User Manual

SLx 45 User Manual

Learn more about key functions and maintenance on the SLx 45.

User Manual

SLx 40 User Manual

Learn more about key functions and maintenance on the SLx 40.

Brochure

SLx Brochure

Learn more about the SLx series and all the features and benefits it entails.
