eVO 300

Slit Lamp eVO 300MICROSCOPE

The eVO 300 delivers a streamlined design with high precision apochromatic optics for accurate anatomical observations, corrected for spherical and chromatic aberrations to ensure comfortable and reliable use. Eco-friendly illumination options, lead-free high dispersion glass, paints and materials minimize the system's environmental impact without sacrificing performance and durability. The eVO 300 represents all that a slit lamp should be.

ADVANTAGES OF eVO 300

Magna Advantages

Efficient and compact illumination design translates to a bright and evenly illuminated image at all magnifications. Halogen and cool LED options are available within a compact bulb housing.

Magna Advantages

A built-in photo port makes documentation simpler and more affordable. Adapters are available for most digital and analog cameras, all while maintaining the system's streamlined form factor. For convenience in fluorescein exams, the microscope has a flip-in Wrattan filter built into the optical chamber.

Magna Advantages

An apochromatic optical design ensures crisp, strain-free images with superior color fidelity and contrast. The eVO™ series of slit lamps is part of a new generation of our proprietary MaxLite™ coated optics, with the latest advancements in anti-reflective and scratch resistant surface technology for a more pristine image over time.

MICROSCOPE SPECIFICATIONS
  • Longitudinal (in/out)

    100mm

  • Microscope

    Galilean

  • Default

    undefined

  • Eyepiece

    WF 12.5X/18mm, diopter adj. ± 5mm

  • Slit Rotation

    0 - 180°

  • Weight of complete microscope

    Microscope with carrier - 2.8kg Swivel arm - 8kg Base with pillar - 30kg

    Movement Ranges:

  • Slit Apertures

    0.6, 5.8, 9, 13.5mm and continuous 1.5 to 12.0mm

  • Built-in-Filters

    Red free, Cobalt blue, Heat absorbing

  • Voltage

    100-240V AC

  • Magnification

    5 step: 6.5X, 10X, 16X, 25X, 40x

  • IPD Range

    48.5 - 77mm

  • Lateral (left/right)

    107mm

  • Frequency

    50-60 Hz

  • Slit Length/Width

    0 - 13.5mm

  • Chin Rest Range

    80mm

  • Illumination

    Halogen 6V-20W

  • Table Base Size

    465mm X 316mm

  • Weight

    25kg (packed)

  • Slit Tilt

    ---

  • Vertical (up/down)

    30mm

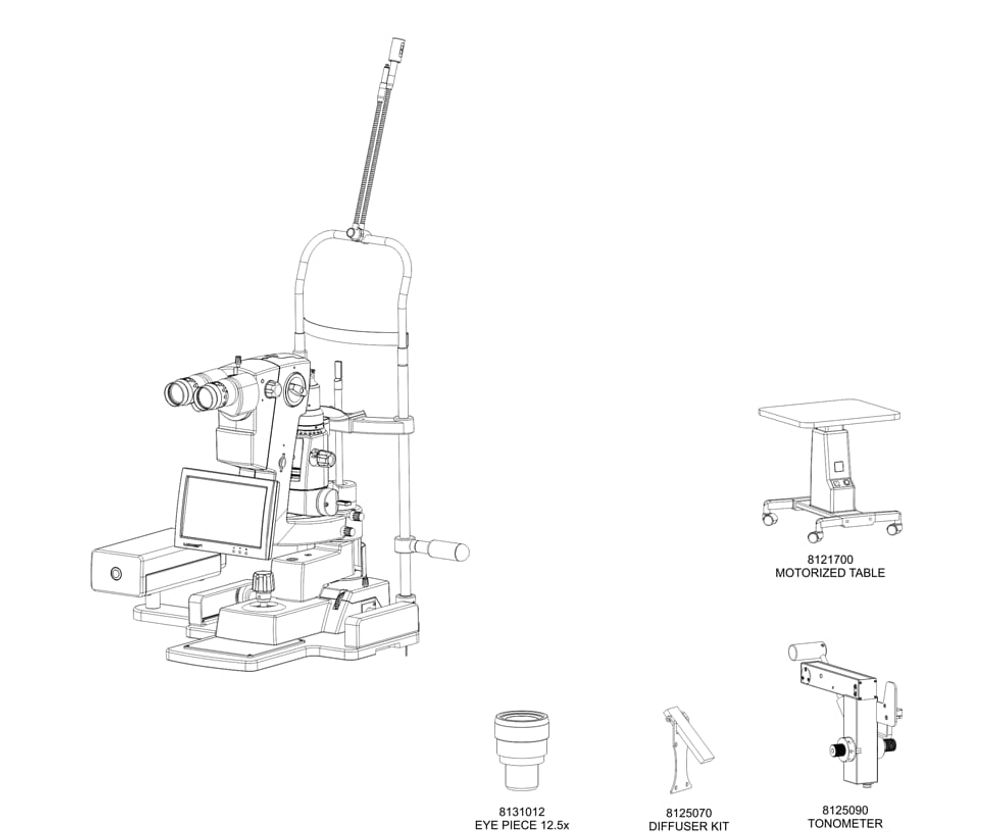

  • Accessories (Optional)

  • Tonometer, Beam splitter, Cameras, Diffuser, Motorized table
Magna Advantages
CONFIGURATIONS
Configurations
DOWNLOADS
User Manual

eVO 300 User Manual

Learn all about the eVO 300, its functions, and more.

Brochure

eVO 300 Brochure

Learn more about the eVO's unique value offering.

User Manual

eVO 350 User Manual
