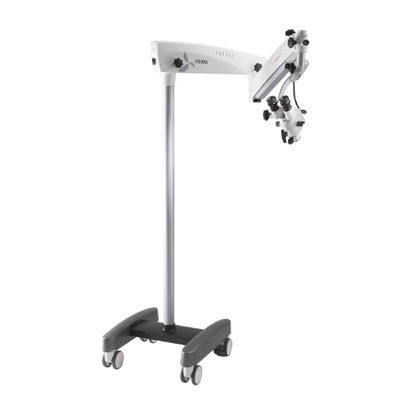

ENT Products Prima ENTMICROSCOPE

The Prima ENT microscope features a performance driven, highly modular design best suited for the dynamic needs of modern ENT clinical and surgical environments. With an efficient and intelligent LED coaxial illumination system, pristine apochromatic optics, and responsive arm movements, the Prima ENT microscope delivers a high standard of performance and reliability.

DOWNLOAD BROCHURE

ADVANTAGES OF Prima ENT

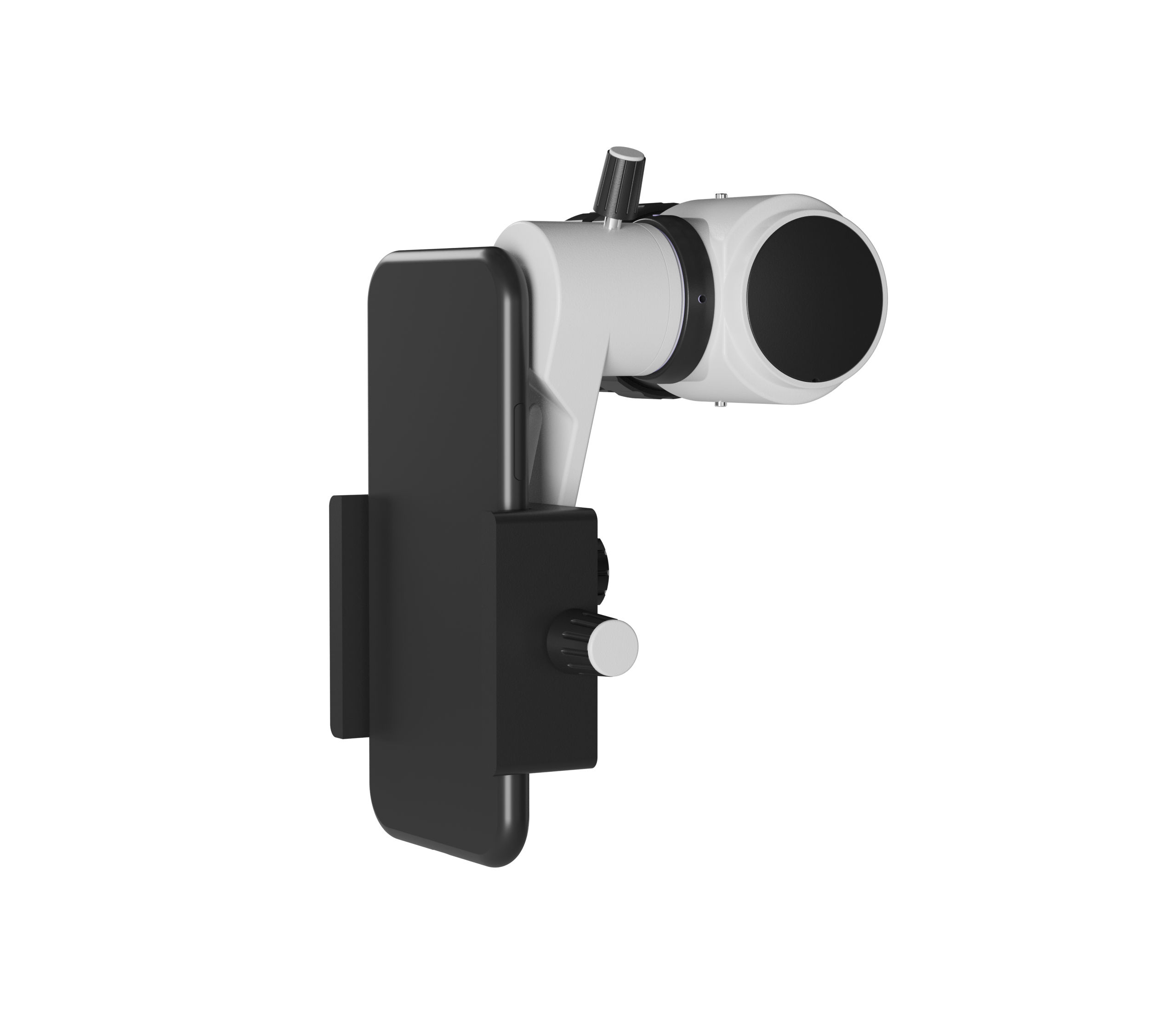

The ProLine™ features a host of DSLR and smart phone adapters in addition to an endoscope camera coupler -- all helping to simplify documentation and communicating treatment plans.

An intelligent LED Park Position makes operation simple when interacting with patients. Raising the arm turns off the illumination; lowering the arm makes the system ready for use again.

A super bright LED delivers over 100,000 Lux with a natural daylight color temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make it the most compact arm system around.

MICROSCOPE SPECIFICATIONS

Default
undefined
Package Contents
Tools for Securing Base and Pillar
Sterilizable Knob Covers
Nylon Dust Cover

Apochromatic Magnichanger
5 step: 0.4X, 0.6X, 1.0X, 1.6X and 2.5x
Microscope carriers
120° carrier
Light Source
50W LED; 100,000+ Lux
Eyepiece
WF 10X/18mm with retractable eye guards, diopter adjustment ±5mm with diopter lock; optional: WF 12.5X/18mm
Binocular Tube
90° straight head, IPD 50-75mm. 0-210° tilting head optional
Accessories (Optional)
Assistant viewer bridge

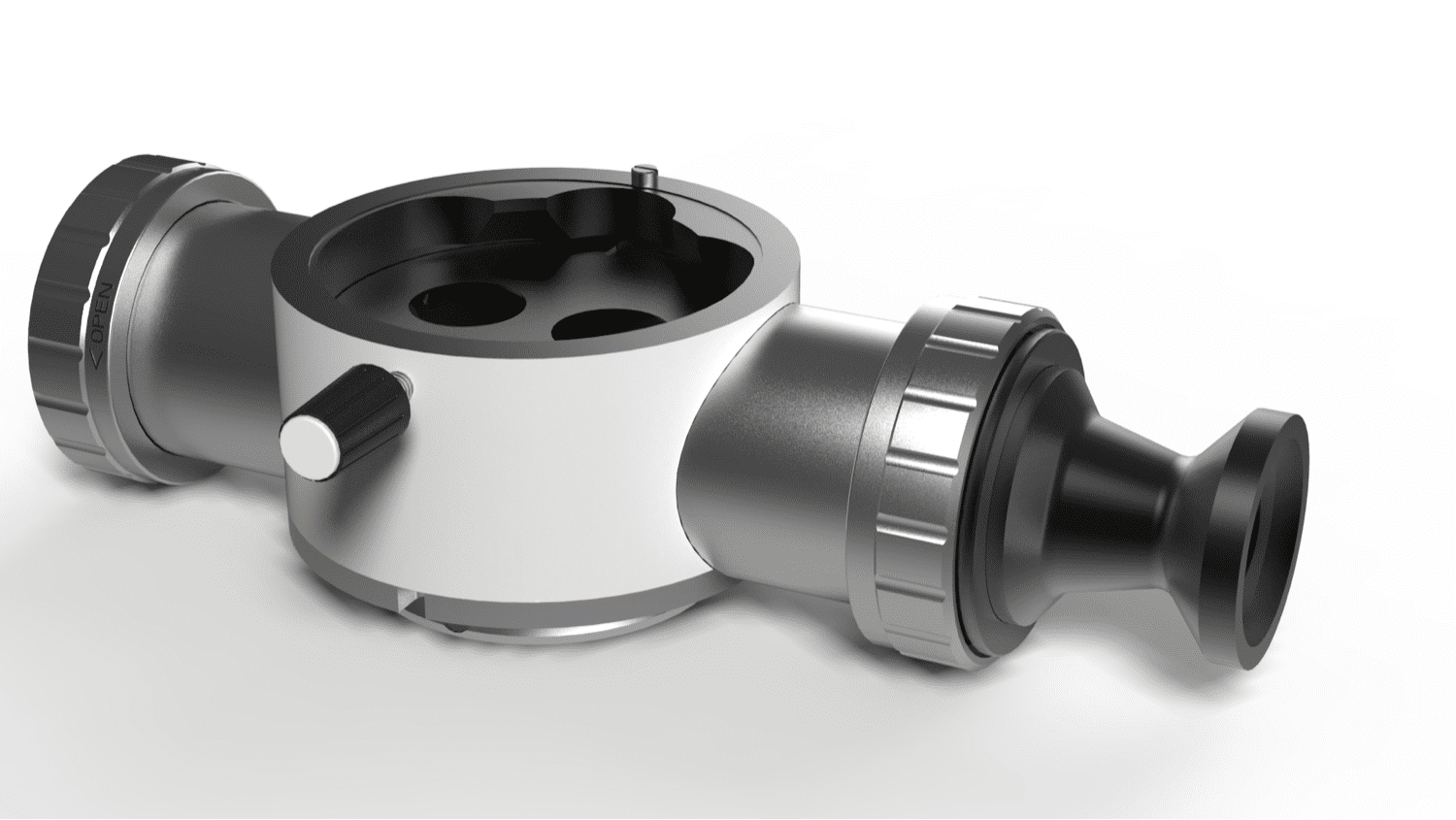

Beam splitters (straight/inclined)
Ergonomic viewing tube, tilting 0 - 210 ̊
ProLine accessories and camera adapters
T-handle kit (dual front handle is optional)
Dual handle

Objective
f-250 mm with fine focus (standard); Options: NuVar with focal length adjustment f-300-400 mm, f-200-400 mm; f-300 mm or f-400 mm with fine focus; f-200 mm fixed objective; objective lens protector.
