CxL Microscope

Where Style Meets Function

Designed for both classroom and laboratory environments, the CxL reflects a sleek design composed of a durable aluminum stand, high throughput glass and optical coatings, and brass gears, all of which position the CxL to withstand the most demanding of user environments. And with lead-free optics and paints, the CxL is a truly eco friendly solution.

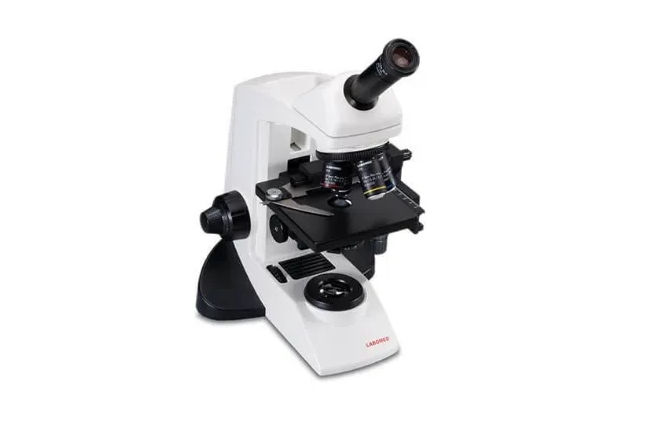

Labomed CxL Microscope

CxL Advantages:

Labomed CxL Microscope Semi-Plan Optics

LP series Semi-Plan optics promise crisp images at all magnifications thanks to a thoughtful design and high-efficiency coatings.

Labomed CxL Microscope Bulbs

Users may choose between Halogen (approx. 2,000 hrs bulb life) or rechargeable LED (approx. 100,000 hours bulb life) illumination options.

Labomed CxL Microscope Captive Rotation

A Captive Rotation feature enables users to easily and safely rotate the viewing head. Dual focussable eyepieces come standard.

Microscope Specifications

  • Stand

    Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.

  • Viewing Bodies

    45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm

  • Eyepiece

    Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating

  • Nosepiece

    Quadruple nosepiece turret (Ball bearing type) with rubber grip

  • Objectives

    LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

  • Mechanical stage

    Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder

  • Condenser

    Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides

  • Focusing

    Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation

  • Illumination

    LED or Halogen 6V-20W illumination with variable illumination control. Up to 100,000 hours of LED life and 2,000 hours of Halogen lamp life

  • Electronics

    Universal input 100V- 240V AC, 50/60Hz, built-in voltage stabilizer

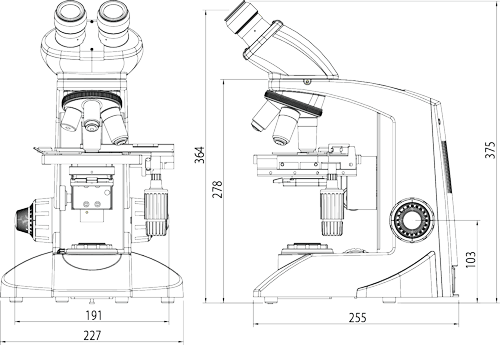

Dimensions (mm)

Labomed CxL Microscope Line Drawing

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Phase, Polarizing, and Dark Field Kits
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Soft Carrying Case

Package Contents

  • Power Cable (6ft)
  • Cargille Immersion Oil (with 100x configurations)
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

Configurations

Labomed CxL Microscope System Drawing

Downloads

Labomed CxL Microscope Brochure

CxL Brochure

Learn more about the CxL's unique value offering.
Download English
Download Spanish
Download Portuguese
Labomed CxL User Manual

CxL User Manual

Learn all about the CxL, its functions, and more.
Download English
Download Spanish
Download Italian
Download German
Download Portuguese
