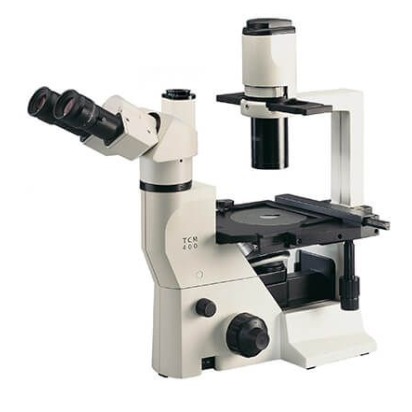

TCM 400

Focussing on the Needs of Clinicians

Cell culture, In Vitro Fertilization (IVF), and fluorescence stains are viewed in high fidelity with the TCM 400. A host of optional accessories make the system modular and versatile. High-performance optics configured in a durable, compact footprint make the TCM 400 inverted microscope ideal for clinical needs.

Labomed TCM400 Inverted Microscope

TCM 400 Advantages:

Labomed TCM400 Inverted Microscope Distance Objectives

LWD series long working distance objectives and a well-designed phase/brightfield illumination system yield sharp contrast images. A long working distance 0.8 N.A. phase condenser accommodates media containers with ease.

Labomed TCM400 Inverted Microscope Camera Option

The TCM 400 will seamlessly accomodate Labomed® cameras as well as 3rd party imaging solutions, enabling image capture and archiving.

Labomed TCM400 Inverted Microscope Illuminaation Filters

With an optional mercury HBO or LED epi-illuminator, the TCM 400 becomes a fully functional fluorescence microscope with a host of filter options.

Microscope Specifications

  • Stand

    Ergonomically designed sturdy stand (aluminum die-cast)

  • Viewing Body

    Binocular, Trinocular 30° and Ergonomic Tiltable Binocular tube (0°-25°), IPD 52-75mm

  • Eyepiece

    Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings

  • Nosepiece

    Quadruple reverse angle turret (Ball bearing type) with rubber grip

  • Objectives

    LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings

  • Mechanical stage

    Fixed plain stage 160mm x 240mm

  • Condenser

    Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters. Specimen holders include 35mm Petri dish holder and two dish/sample holders (only with optional mechanical stage)

  • Focusing

    Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm

  • Illumination

    Transmitted Illumination system 6v30w Halogen with intensity control. Up to 500 hours of Halogen lamp life.

  • Electronics

    Universal power supply (110V-240V) with built-in voltage stabilizer

Dimensions (mm)

Labomed TCM400 Inverted Microscope Line Drawing

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Phase and Fluorescence Kits
  • Auxiliary Objectives and Eyepieces
  • Digital Cameras and Adapters
  • Soft Carrying Case

Package Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth
  • Instapack Packaging

Configurations

Labomed TCM400 Inverted Microscope System Drawing

Downloads

Labomed TCM400 Inverted Microscope Brochure

TCM 400 Brochure

Learn more about the TCM 400's unique value offering.
Download English
Download Portuguese
Labomed TCM400 Inverted Microscope User Manual

TCM 400 User Manual

Learn all about the TCM 400, its functions, and more.
Download English
Download Spanish
Download French
Download German
Download Italian
Download Portuguese
