Prima Trainer

Multi-Disciplinary Prima Trainer MICROSCOPE

The Prima Trainer is designed for educational and research facilities looking for table-top magnification systems that can provide a long working distance, bright and homogenous LED illumination, and super resolution images all in a compact form factor with fluid maneuverability. Our MaxLite™ coated apochromatic magnichanger promises high color fidelity in three color wavelengths. A well designed arm enables a lower center of gravity, ensuring a well balanced and vibration free microscope that won't monopolize your workstation.

ADVANTAGES OF Prima Trainer

PRIMA DNT Trainer Advantages

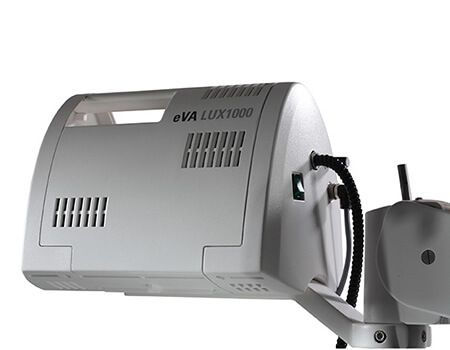

A super bright LED delivers over 100,000 Lux with a natural daylight color temperature. A run time of up to 50,000 hours eliminates the need for frequent bulb changes. The light box easily mounts to the column or swivel arm.

PRIMA DNT Trainer Advantages

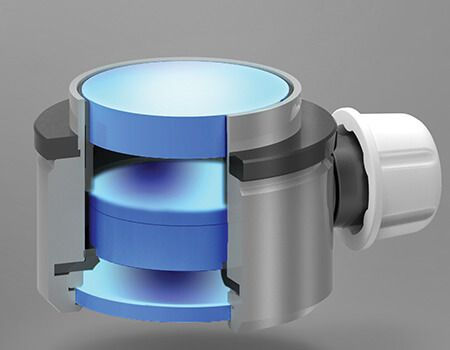

An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free, durable optics.

PRIMA DNT Trainer Advantages

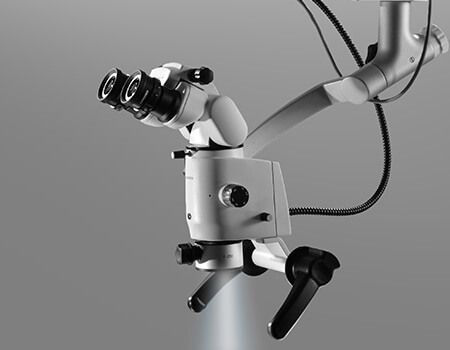

The optional NuVar™ objective delivers variable working distance settings within a focal range of f300-400 mm (or f200-400 mm), making the Prima Trainer more versatile for multi-user workstations.

PRIMA DNT Trainer Advantages

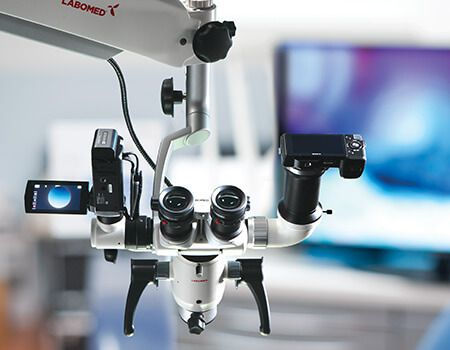

The ProLine™ features a host of digital SLR, video camera, and CCD adapters.

PRIMA DNT Trainer Advantages

A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.

  • Binocular Tube

    0-210° tiltable ergonomic head

  • Apochromatic Magnichanger

    5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X

  • Eyepiece

    WF 10X/18mm with retractable eye guards, diopter adjustment ± 5mm with diopter lock; optional: WF 12.5X/18mm

  • Objective

    f-250 mm with fine focus (standard); Options: NuVar with focal length adjustment f-300-400 mm, f-200-400 mm; f-300 mm or f-400 mm with fine focus; f-200 mm fixed objective; objective lens protector.

  • Light Source

    50W LED; 100,000+ Lux

  • Built-in-Filters

    Green & Yellow

  • Vertical Movement of arm

    ± 250 mm, power saving feature with light cut-off in park position

  • Microscope carriers

    120° carrier

  • Mounting Options

    Table mount only

  • Package Contents
      Tools for securing table mount
  • Accessories (Optional)
    • Beam splitters (straight/inclined)
    • Rotoplate and/or extender
    • Proline range of camera/video adapters
    • NuVar variable working distance objective
    • Spacers and extender arms
Mounting
Mounting

Configurations
